Inner Sunset Streetscape Improvement Project

Project Introduction

Several City agencies, with the help of the Inner Sunset and Cole Valley communities developed new designs to the streetscape to enhance walkability of neighborhoods along the N Judah from Cole Valley to 19th Avenue. The project was a partnership between SFMTA and Public Works to add street amenities to new transit bulb-outs for the the N Judah as part of Muni Forward. The project is now complete.

Project Status
  1. Completed
Current Phase or Stage
Completed
Predicted Completion
2019
Project Success
On schedule
Improvements
Muni Metro train
New Transit Boarding bulbs
Streetscape
walking
New street amenities
SFMTA Accessibility icon
Upgrades to curb ramps
Bus Routes and Rail Lines
Streets
Irving Street, Judah Street
Project Details, History or Features

After years of collaboration between city agencies and community partners, the Inner Sunset Streetscape Improvement Project was constructed from 2017 to 2019. The project aimed to improve N Judah service, beautify the Inner Sunset neighborhood and make our streets more livable, vibrant and sustainable.

The project consisted of transit safety improvements for people walking, sewer work, landscape improvements, electrical work, water line replacement and street paving. This work was completed along Irving Street, from Arguello Boulevard to 19th Avenue, 9th Avenue from Irving Street to Judah Street, and 10th Avenue from Irving Street to Judah Street.

Additionally, the SFMTA and Public Works improved the streetscape for the existing transit bulbouts in Cole Valley at Carl and Cole streets, and Carl and Stanyan streets.


Project Overview

Improvements in the project included:

  • Streetscape improvements on Irving Street and 9th Avenue in the Inner Sunset

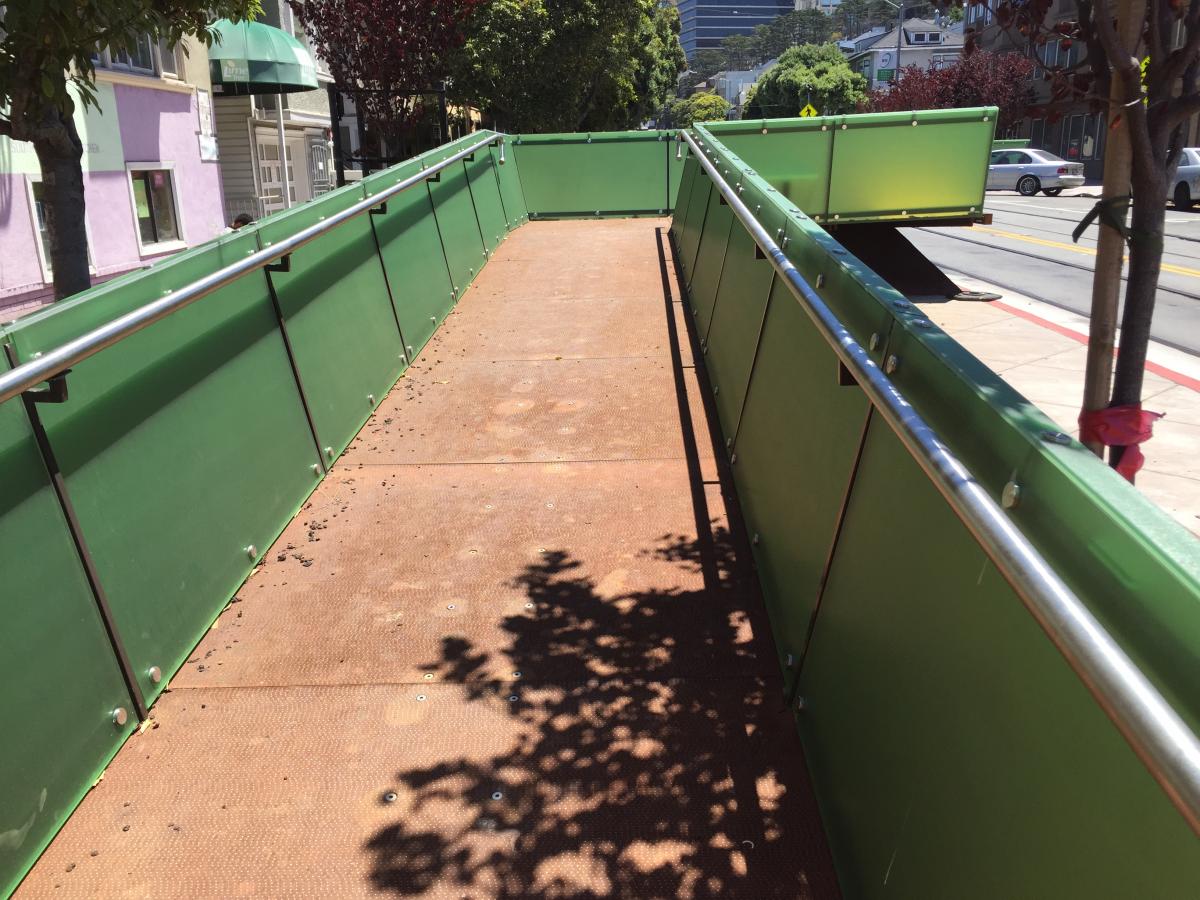

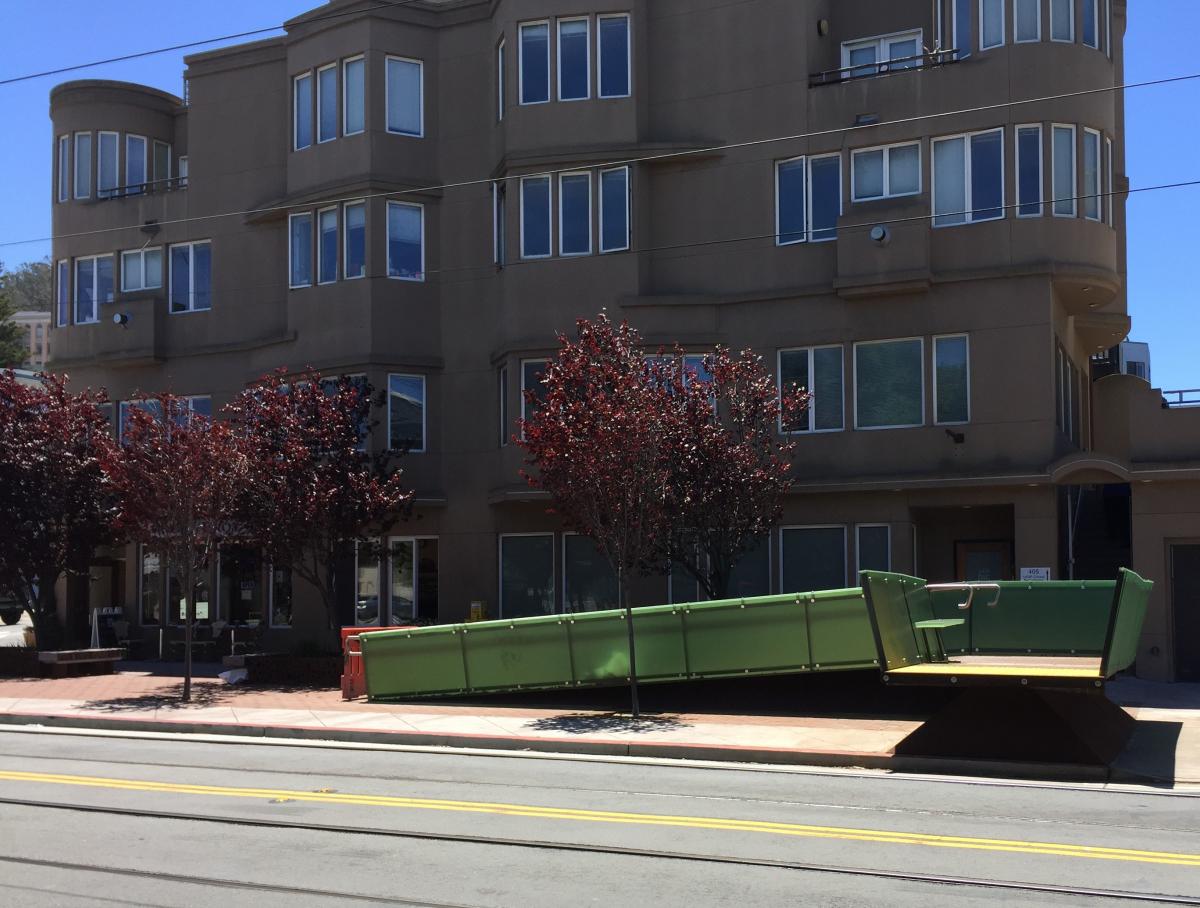

  • Muni Forward transit bulbs on Irving Street at 5th, 6th, and 8th avenues, and on 9th Avenue between Irving and Judah streets.
  • Pedestrian bulbs at the northwest corner of 7th Avenue and Irving Street, and the southeast corner of 9th Avenue and Irving Street.
  • Streetscape improvements at the existing transit bulbs in Cole Valley at the intersections of Carl and Cole streets, and Carl and Stanyan streets.
  • Traffic Signal upgrades on Irving Street at the 5th and 8th avenue intersections
  • Road repaving and curb ramp upgrades on Irving Street from Arguello Boulevard to 19th Avenue, and 9th and 10th avenues from Irving to Judah streets
  • Utility upgrades:
    • Sewer and water line repair and replacement on Irving Street
    • Auxiliary Water Supply System (AWSS) replacement on Irving Street
    • Department of Technology fiber optic installation on Irving Street
Muni Forward
San Francisco Water Power Sewer logo
San Francisco Public Works logo
Contact Information
415.646.2005
