Lake Merced Quick-Build Project

SFMTA.com/LakeMercedQB
Project Introduction



The Lake Merced Quick-Build Project proposes roadway reallocation and lane narrowing on segments of Lake Merced Boulevard from Skyline Boulevard to John Muir Drive, promoting traffic calming and allowing for multimodal street improvements. The Lake Merced Quick-Build Project has two principal goals:

1. Install traffic calming improvements to reduce collisions and improve comfort for all travelers along Lake Merced Boulevard

2. Implement safe pedestrian and bicycle connections to or along Lake Merced Boulevard

The area north and east of Lake Merced Park on Lake Merced Boulevard between Font and Sunset boulevards is part of San Francisco's Vision Zero High Injury Network (HIN), where 75% of the City's traffic injuries and fatalities occur on just 13% of San Francisco streets.

The Quick-Build Project proposes improvements that will increase safety for all including:

  • Reallocating parking and traffic lanes (only on some segments) to provide the opportunity to install upgraded pedestrian, bicycle, and transit infrastructure.
  • Narrowing travel lanes widths to increase driver awareness and lower motor vehicle speeds.
  • Upgrading crossings by:

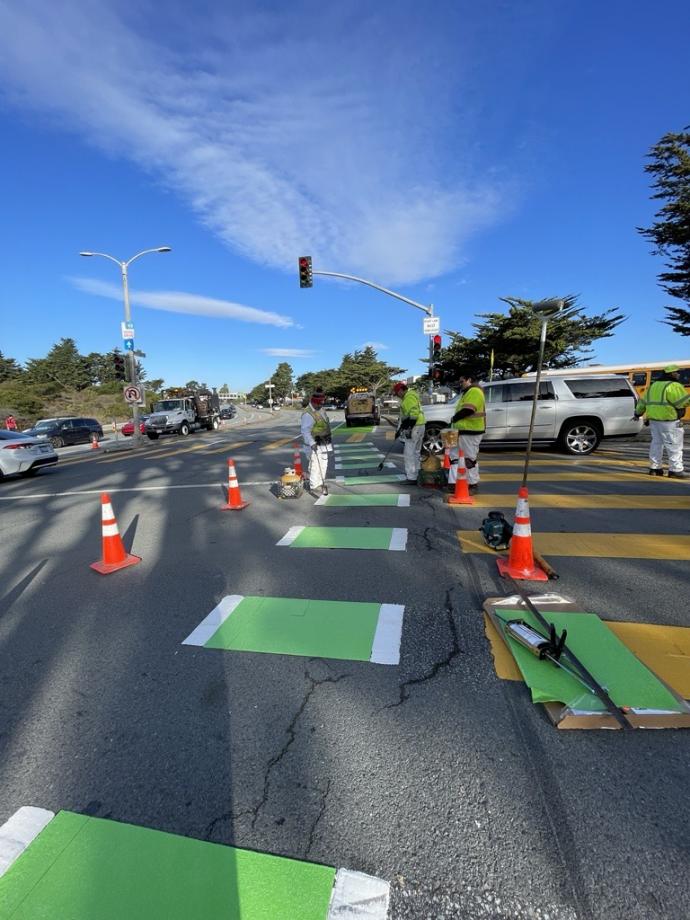

    • Refreshing road paint to improve crosswalk visibility
    • Installing advance limit lines to create buffer between crosswalk and vehicles at stop lights
    • Upgrading transverse crosswalks (crosswalks outlined by only two parallel lines) to continental ("striped") crosswalks
    • Constructing raised crosswalks or speed cushions at slip lanes, where feasible, to slow right-fast turning vehicles
    • Upgrading traffic signal lens size from 8" to 12"
  • Installing on-street bikeways separated from traffic lanes using raised concrete islands to provide extra protection, and comfort for cyclists on the road, particularly on roads like Lake Merced Blvd, which has speed limits greater than 25 miles per hour.

  • Implementing Neighborways to serve as an alternative to constrained streets with high speeds and heavy vehicle traffic. Street design measures include speed humps and wayfinding pavement markings to make residential streets friendlier for walking and biking. Neighborways will be proposed where a traffic-separated bikeway is not feasible along Lake Merced Blvd.

  • Implementing transit boarding islands and stop optimization. Transit boarding islands are dedicated passenger waiting areas that are separated from the sidewalk by a bikeway. Upgrading flag stops to transit boarding islands along Lake Merced Blvd. streamlines transit service by enabling in-lane stops and eliminating bike-bus conflicts.

Project Timeline
July 2021
Project kickoff!
Pending
Summer 2021 - Spring 2022
Planning and Design Phase
Pending
Summer/Fall 2022
SFMTA Board Approval
Pending
Fall 2022/Winter 2023
Construction Begins
Pending
Project Status
Planning
Preliminary Engineering
Detailed Design
Improvements
bike
walking
Streetscape
Neighborhoods
Streets
Lake Merced Boulevard from Skyline Boulevard through John Muir Drive

Background

The Lake Merced Quick Build Project builds upon two previous studies conducted in coordination with District 7:

  1. The Lake Merced Bikeway Feasibility Study was completed in January 2021 using Neighborhood Transportation Improvement Program (NTIP) funding. The primary goal of this study was to understand options for relieving congestion on the multi-use pathway around the lake. This study presents near-term options for adding bikeways at road-level on streets adjacent to the lake and long-term options for widening the multi-use pathway around the lake. This study currently has no funding for implementation.
  2. The Lake Merced Pedestrian Community Based Transportation Plan (CBTP) was completed in October 2021.The CBTP prioritizes recommendations for both spot and corridor wide pedestrian safety improvements on Lake Merced Blvd. from Skyline Blvd. to John Muir Dr. The Quick Build scope incorporates many of these identified improvements.



San Francisco County Transportation Authority logo
Vision Zero SF logo
Contact Information
Shayda Haghghoo
(415) 646-2673
